Deflecting Beam Torque Wrench Adaptors

WBT P/N

390010-230

Description

Standard type & safety lock type adaptors for Torque Wrenches.

Grouped product items
Variations
WBT P/N: 390040 Torque Wrench Adaptor 3/8" drive A$48.65	Out of stock

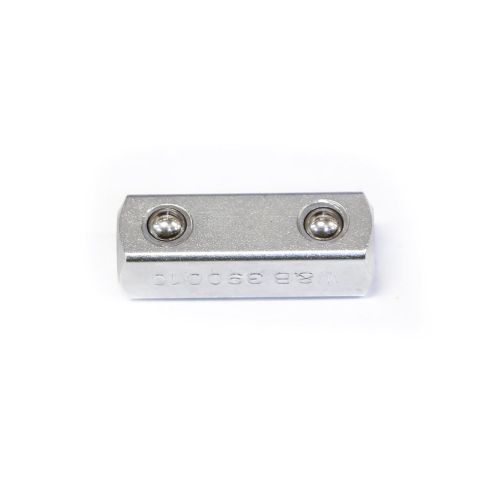

WBT P/N: 390010 Torque Wrench Adaptor 1/2" drive A$48.65	Out of stock
WBT P/N: 390060 Torque Wrench Adaptor 3/4" drive A$44.65	Out of stock
WBT P/N: 390110 Torque Wrench Adaptor 1" drive A$105.63
WBT P/N: 390230 Torque Wrench Adaptor 1" drive with Safety Lock A$162.75

Details

Standard type & safety lock type adaptors for Torque Wrenches.

Specifications

SKU	Dimension (inches)			Dimension (mm)			Load rating (lbf.ft.)	Nm	Kg/m
SKU	square	square	length	square	square	length	Load rating (lbf.ft.)	Nm	Kg/m
390010	1/2	1/2	1.9/16	12.5	12.5	40	220	300	30
390040	3/8	3/8	1.1/8	9.5	9.5	29	80	110	11.1
390060	3/4	3/4	2.1/8	19.05	19.05	54	300	400	41.5
390110	1	1	3	25	25	75	1000	1350	138.2
390230 +	1	1	3	25	25	76	1000	1350	138.2

NOTE: All the above adaptors are male to male.

+These adaptors are fitted with a safety lock. Safety lock adaptors are designed to suit wrenches above 300 ft.lb. (400Nm). Recommended for use with large sockets.
