Deflecting Beam Torque Wrench Signal - Trip Kits

WBT P/N

321098-325098

Grouped product items
Variations
WBT P/N: 320398 Deflecting Beam Torque Wrench Signal - Trip Kit 10 - 200lbf.in. A$36.30	Out of stock
WBT P/N: 321098 Deflecting Beam Torque Wrench Signal - Trip Kit 4 - 80ft.lb A$36.30
WBT P/N: 322098 Deflecting Beam Torque Wrench Signal - Trip Kit 10 - 120ft.lb. A$33.28	Out of stock
WBT P/N: 322698 Deflecting Beam Torque Wrench Signal - Trip Kit 10 - 140ft.lb. A$33.28
WBT P/N: 325098 Deflecting Beam Torque Wrench Signal - Trip Kit 50 - 300ft.lb. A$57.48

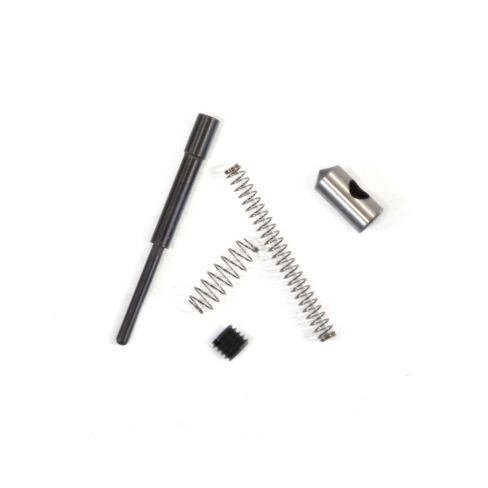

These signal - trip kits are replacements for the dual signal mechanism on the Warren & Brown deflecting beam torque wrenches.

Wrench No.	Capacity (ft.lb./in.lb./Nm/kg.cm)	Trip Kit	Wedge Kit	Comment
320A	10 - 200lbf.in.	320398	320595	Flat wedge
321A	4 - 80ft.lb	321098	321495	Flat wedge
322A	10 - 120ft.lb.	322098	322595	Flat wedge
323A	20 - 200ft.lb.	322098	323595	Flat wedge
324A	50 - 300ft.lb.	322098	324595	Flat wedge
325A	100 - 500ft.lb.	322098	325595	Flat wedge
326A	200 - 1000ft.lb.	325098	326595	Flat wedge
300509	100 - 200lb.in. / 1/22Nm / 10 - 220kg.cm		Flat wedge
301509	4 - 80ft.lb./ 5 - 110Nm / 5 - 11kg.m		Flat wedge
302509	10 - 120ft.lb. / 10 - 160Nm / 1 - 16kg.m		Flat wedge
303209	10 - 180in.lb.		Flat wedge
303219	4 - 80ft.lb.		Flat wedge
303229	10 - 120ft.lb.		Flat wedge
303239	20 - 200ft.lb		Flat wedge
303249	50 - 30ft.lb.
303259	100 - 500ft.lb.
303269	200 - 1000ft.lb.
303409	10 - 180ft.lb.
303509	20 - 200ft.lb. / 30 - 270Nm / 3 - 27kg.m
304509	50 - 300ft.lb. / 60 - 400Nm / 6 - 40kg.m
305509	100 - 500ft.lb. / 140 - 680Nm / 14 - 68kg.m
306509	200 - 1000ft.lb. / 260 - 1340Nm / 26 - 134kg.m
320300	10 - 180in.lb. / 1 - 20Nm	320398	320395	Flat deflection bar
320360	1 - 20Nm	320398	320395	Flat deflection bar
320400	10 - 180in.lb / 1 - 20Nm	320398	320495	Flat wedge
